Model:W-6001

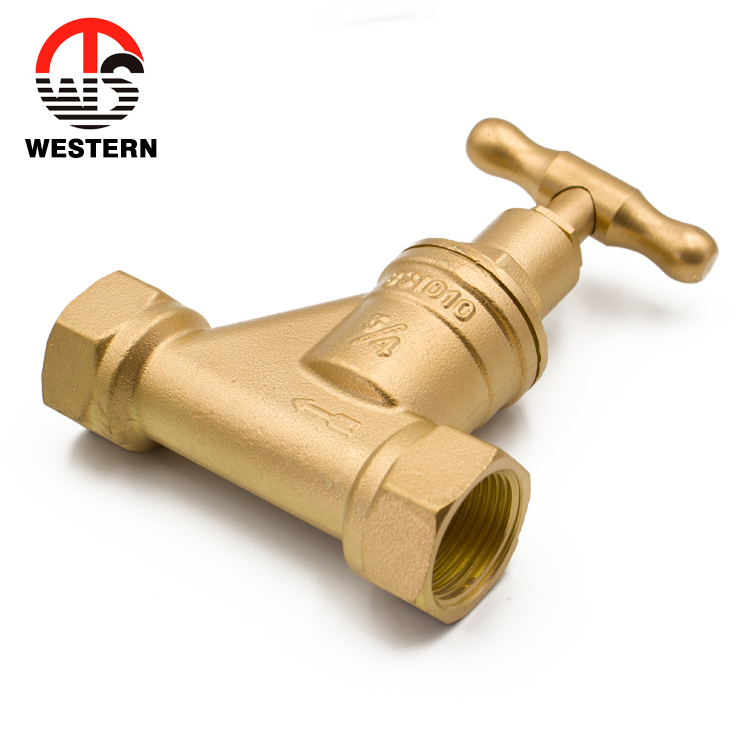

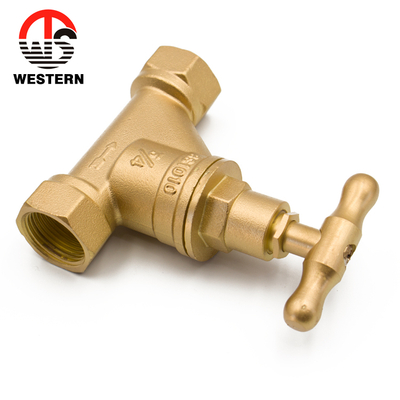

BRASS STOP VALVE,F/F ISO228/1

RUBBER SEALED,WITH BRASS T

HANDLE BRITISH BS1010

STANDARD PN20

SIZE:1/2"-1"
Availability:
Model:W-6001
Model:W-6001
Model:W-6001

Description

BRASS ANGLE VALVE

Material

Brass Body, Brass T Handle, Rubber Sealed

Brass can be CuZnPb3,CZ121,C37710,CW614N,CW617,DZR etc

Surface

Brass Plain Colour

Size

1/2”- 1

Testing Pressure

100% tested with 0.6MPa – 0.8Mpa by air

Thread

BSP & NPT for selecting

Sample Time

1) 5 days-For our existing samples for reference

2) 15 days-If new size OR need make the new mould

OEM Acceptable

Yes

Production Capacity

100000 pcs each month

Packing Details

Standard export packing or as customers requirements.

Inner box, outer carton and pallet

Payment Term

T/T,L/C, D/P,D/A,PAYPAL,WESTERN UNION

Delivery Time

25 days to 45 days after confirming the order

Minimum Order QTY

300 – 5000pcs

Inspection

Each cargo will be inspected before shipping. The third-party inspection company is acceptable, like SGS,  ASIA inspection etc.


parameters

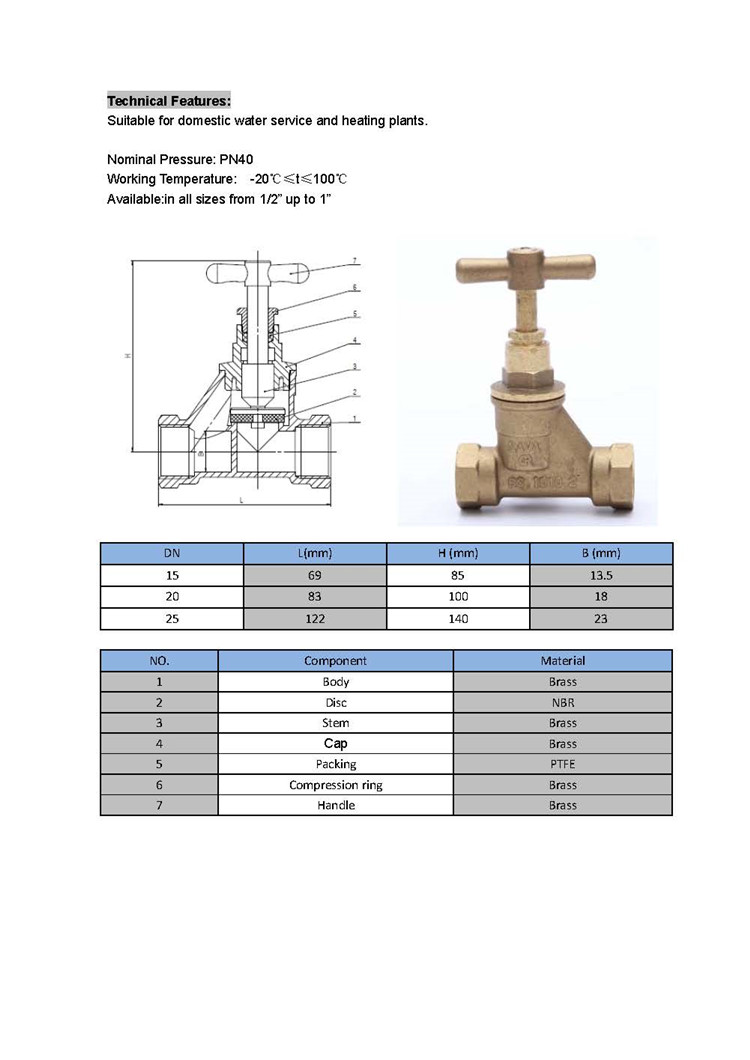

W-6001_副本
